Styrax 18mm Plywood: Container Load Capacity Guide

990 sheets. 18 pallets. 53 CBM. 26.5 MT. Those four numbers define a full 40HC container of styrax 18mm plywood — and knowing them before you request a quotation is the difference between a clean purchase order and a container that arrives with documentation errors, repackaging costs, or a payload claim.

This article gives you the complete factory-verified container load capacity for styrax 18mm plywood in a 40HC, including the step-by-step calculation, size variants, comparisons to acacia and eucalyptus cores, and the rules HCPLY uses to ensure every container ships clean and clears customs without surprises.

💡 Key Insight: 18mm is the single most-ordered plywood thickness globally. It is the default specification for furniture carcasses, cabinet boxes, and interior construction panels. Getting the container math right for 18mm is not an edge case — it is the standard calculation every serious buyer needs.

📋 The 18mm Styrax Loading Table (Factory Reference)

The following table is derived from the factory calculation formula used at HCPLY’s production facilities in Phú Thọ Province, Northern Vietnam (HCPLY production data, 2026).

This table represents fully executed factory packing — not theoretical maximums. Every number has been validated against HCPLY’s packing list audit process before container seal.

🔧 How the Numbers Are Calculated

Understanding the calculation process lets you verify any supplier’s packing claims and catch errors in purchase orders before they become container disputes.

📌 Step 1: Sheets per Pallet

Sheets/Pallet = ROUNDDOWN(1000 ÷ Thickness_mm)
              = ROUNDDOWN(1000 ÷ 18)
              = ROUNDDOWN(55.56)
              = 55 sheets

The pallet height ceiling of 1000 mm is a structural and logistics rule, not a preference. At 1000 mm, pallets remain stable under forklift handling, fit within the 40HC interior height without stacking hazards, and satisfy standard container audit requirements. Fractional sheets are never used — the ROUNDDOWN function is mandatory.

📌 Step 2: Volume per Sheet

Volume/Sheet = Thickness_m × Length_m × Width_m
             = 0.018 × 1.220 × 2.440
             = 0.053626 CBM

This is the true cubic volume of one sheet of plywood. It does not include void space between sheets or packaging materials. Packing list CBM is the sum of sheet volumes only.

📌 Step 3: Total CBM per 40HC

Total CBM = Sheets per 40HC × Volume per Sheet
          = (55 × 18) × 0.053626
          = 990 × 0.053626
          = 53.09 CBM

📌 Step 4: Payload Verification

Weight (MT) = Total CBM × Core Density (kg/CBM) ÷ 1000
            = 53.09 × 500 ÷ 1000
            = 26.5 MT

26.5 MT is 2.0 MT below the 40HC payload ceiling of 28.5 MT. This headroom is intentional. Styrax core’s low density (480–500 kg/m³) is precisely what makes 18 pallets viable — the container reaches pallet geometry limits before reaching the weight limit (HCPLY production data, 2026).

📊 18mm Plywood Across All Three Core Species

Not every buyer specifies styrax. Some markets and applications call for acacia or eucalyptus core. The table below shows the 40HC loading outcome for 18mm plywood across all three Vietnamese core species.

💡 Note: Eucalyptus core uses a 970mm stack height for 1220×2440mm sheets, giving ROUNDDOWN(970÷18) = 53 sheets per pallet (not 55). This reduces total sheets to 795 but keeps container weight at ~27.7 MT — safely within the 28.5 MT payload limit. (HCPLY production data, 2026)

Key takeaway: Styrax core 18mm gives you 195 more sheets per container than eucalyptus core 18mm (990 vs 795). At typical FOB pricing, that is a measurable reduction in freight cost per sheet — relevant for any buyer calculating landed cost at scale.

“18mm is the thickness where core selection has the most direct impact on container economics,” says Lucy, International Sales Manager at HCPLY. “Buyers who default to eucalyptus core for 18mm furniture panels without checking CBM end up paying more per sheet delivered than they would with styrax — which offers equivalent performance for interior applications.”

📐 Size Variant: 1250×2500mm (Metric EU Standard)

A significant portion of European and Korean buyers specify 1250×2500mm panels instead of the 1220×2440mm standard. The sheet count per pallet remains identical, but total CBM increases.

The 1250×2500mm format produces approximately 55.7 CBM per 40HC — 2.6 CBM more than the standard size. The tradeoff is reduced payload headroom: only 0.6 MT remains before hitting the 28.5 MT ceiling. This matters for mixed-thickness orders where accurate weight calculation is critical.

Both sizes achieve the same 18-pallet layout. The additional volume comes entirely from the larger sheet footprint, not from additional pallets or altered stacking.

💡 Tip: If your destination market accepts both sizes, 1220×2440mm is generally preferable for buyers optimizing documentation simplicity. The standard size has tighter freight math and more headroom for weight variance.

🏭 Why Styrax Core Is Standard for 18mm Furniture Plywood

Styrax (bồ đề) is the dominant core species for 18mm premium furniture and cabinet plywood from Northern Vietnam. The reasons are technical, not arbitrary.

Density: At 480–500 kg/m³, styrax is the lightest Vietnamese plantation species. This is comparable to Baltic birch core (approximately 480–520 kg/m³), which is the global benchmark for furniture plywood (Forest Products Laboratory, USDA, 2010).

Color: Styrax is white to pale yellow — the cleanest core available from Vietnamese plantations. This matters for edge visibility in finished furniture, particularly for open-edge cabinet construction and high-end interior joinery.

Stability: Styrax core holds nail and screw fasteners reliably at 18mm. The veneer ply structure — typically 11 layers at 18mm — distributes load evenly and resists warping under furniture production workshop conditions.

Glue compatibility: Styrax accepts both melamine (MR) and phenolic (WBP) glue systems. For 18mm furniture panels destined for EU or US markets, the standard specification is Melamine (MR) glue with E0 emission standard — the most common setup at HCPLY’s premium furniture facility.

Certification: Styrax core is the standard substrate for FSC, CARB P2, and CE-certified plywood from HCPLY’s premium furniture production segment. Full certification documentation ships with every container (HCPLY production data, 2026).

📦 Pallet Configuration Detail

Understanding pallet configuration helps buyers cross-check supplier packing lists and spot discrepancies before container seal.

At HCPLY, standard 18mm pallet configuration is as follows:

• Stack height: 1000 mm maximum (55 sheets × 18 mm = 990 mm actual)
• Pallet base: Standard wood pallet, 1220×2440mm footprint matching sheet dimensions
• Strapping: 4-point steel banding, factory-standard tensioning
• Edge protection: Corner protectors on all four vertical edges
• Wrap: Stretch film + carton board outer layer for moisture protection during transit

The 10 mm gap between actual stack height (990 mm) and the 1000 mm ceiling is a deliberate tolerance buffer. It accounts for pallet base thickness variation and prevents binding when pallets are loaded by forklift into the 40HC.

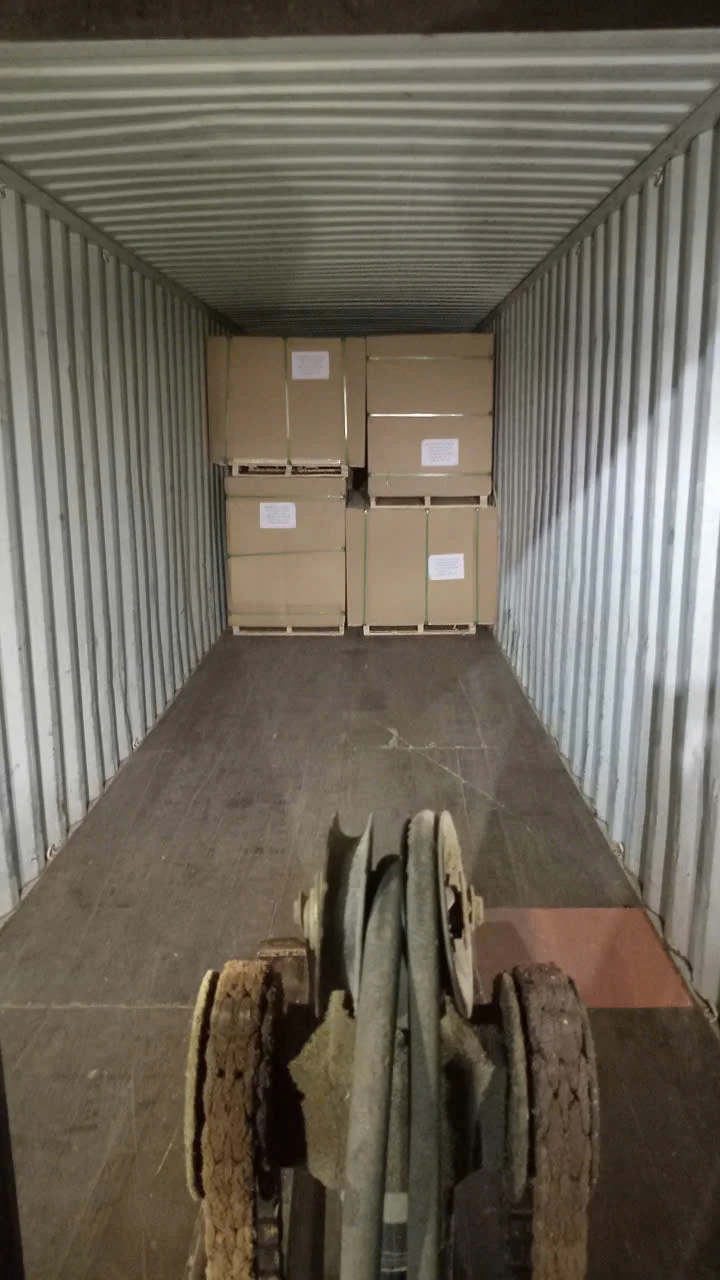

🔗 Container Layout: 18 Pallets in a 40HC

The physical arrangement of 18 pallets inside a 40HC follows a standard factory pattern validated at HCPLY (HCPLY production data, 2026):

• 16 pallets loaded flat (horizontal) in a 4×4 arrangement along the container floor
• 2 pallets stood vertically at the front wall of the container (door end)

This layout maximizes floor coverage and uses the 40HC’s additional interior height. The vertical pallets at the front position the heaviest part of the load near the container door for balanced weight distribution during ocean transit.

⚠️ Important: The 18-pallet layout is specific to 1220×2440mm sheets and the 1000mm stack height standard. Any change to pallet height, sheet size, or container type requires recalculation from scratch. Do not apply this layout to 20-foot dry or standard 40-foot containers — internal dimensions differ materially.

📊 18mm Versus Adjacent Thicknesses: Loading Comparison

Buyers sometimes order mixed containers combining 18mm with 15mm or 21mm panels. Understanding how the loading math shifts helps verify mixed-thickness packing lists.

An important pattern emerges: for styrax core, CBM per 40HC remains relatively consistent across common thickness ranges (52–54 CBM). This is because thicker panels have fewer sheets but more volume per sheet. The container is always volume-efficient. The differences are in sheet count — which affects production cost per container, not freight cost per CBM.

For the full CBM calculation formula covering all thicknesses, including worked examples with acacia and eucalyptus core, see the dedicated calculation guide.

✅ What to Verify in Your Supplier’s Packing List

A packing list for 18mm styrax plywood in a 40HC should be internally consistent. Use these checks before signing off:

1. Sheet count per pallet — should be 55 for 18mm (ROUNDDOWN(1000 ÷ 18))
2. Total pallets — should be 18 for styrax core (not 16 or 15)
3. Total sheets — should equal 55 × 18 = 990
4. CBM per pallet — should be 55 × 0.053626 = 2.9494 CBM ≈ 2.95 CBM
5. Total CBM — should be 18 × 2.95 ≈ 53.1 CBM
6. Total weight — should be approximately 26.5 MT for pure styrax 18mm
7. Net vs gross weight — gross weight adds pallet wood (~25 kg/pallet × 18 = ~450 kg). Gross should be ~26.95 MT

Any material discrepancy — particularly in sheet count, pallet count, or total weight — warrants a formal clarification request before container loading proceeds.

Get a Free Quote — HCPLY provides a complete packing list draft at quotation stage, before deposit.

🔗 Related Guides

For deeper context on container loading and styrax core:

• Plywood container packing calculation 40HC — Full multi-thickness, multi-core packing tables. The master reference for container loading calculations.
• Styrax core plywood container loading guide — Why styrax loads 18 pallets while eucalyptus loads only 15. Full density physics explanation.
• Plywood pallet configuration 40HC — Standard pallet dimensions, strapping requirements, forklift clearance rules.
• Plywood CBM calculation formula — Step-by-step CBM formula for any thickness with worked examples.
• Styrax core plywood — birch alternative guide — Why styrax is the premium birch core substitute for furniture plywood export.

📋 Summary

18mm plywood is the most-ordered thickness in furniture plywood export, and styrax core is the standard specification for premium furniture panels from Northern Vietnam.

Key numbers for a full 40HC container of styrax 18mm plywood (1220×2440mm):

• 55 sheets per pallet (ROUNDDOWN(1000 ÷ 18))
• 18 pallets per 40HC (styrax density: 500 kg/m³)
• 990 total sheets
• ~53.1 CBM total volume
• ~26.5 MT total weight
• 2.0 MT payload headroom below the 28.5 MT limit

For the 1250×2500mm metric size, the same sheet and pallet counts apply, but total CBM increases to approximately 55.7 CBM with reduced payload headroom of 0.6 MT.

HCPLY manages dedicated premium furniture production facilities in Phú Thọ Province, Northern Vietnam. All styrax 18mm plywood ships with full factory documentation: FSC certificate, CARB P2 test report, packing list, commercial invoice, and bill of lading. The packing list matches these loading numbers exactly.

Get a container loading plan and FOB quote for styrax 18mm plywood — No commitment required. HCPLY responds within one business day.
