Plywood Sanding Grit Sequence: Factory Calibration Guide

The correct plywood sanding grit sequence separates export-quality furniture panels from rejects — and most sanding failures trace back to one mistake: wrong grit at the wrong stage. Vietnamese plywood factories that supply furniture-grade panels to the EU, Korea, and Japan run a two-phase sanding process. Each phase has a specific objective, a defined grit range, and a failure mode that produces material loss. Getting this sequence right is non-negotiable when the face veneer is only 0.2–0.4mm thick.

This guide covers the factory-level sanding sequence used at HCPLY’s dedicated furniture facility in Phu Tho Province. All parameters come from production operations, not theory. If you are specifying sanded plywood for import — or evaluating why a shipment arrived with surface defects — this is where to start.

⚙️ The Two-Phase Factory Sanding System

Plywood sanding inside a production facility is not a single operation. It is two separate phases, run on different machines with different objectives:

Phase 1 — Calibration: Coarse grits on a steel drum. Goal: set panel thickness to within ±0.3mm of specification. Material removal is heavy. Surface appearance is irrelevant at this stage. (HCPLY production data, 2026)

Phase 2 — Finish Sanding: Fine grits on a rubber platen. Goal: produce a smooth face veneer surface that accepts paint, lacquer, or veneer overlay. Material removal is minimal. Surface quality is everything.

Both phases use wide-belt industrial sanders, but the machine setup differs completely between phases. A factory running only one phase — calibrating without finish sanding — ships panels that measure correctly but feel rough. A factory running only finish sanding ships panels with poor thickness consistency. Export-grade furniture plywood requires both.

📌 Which Products Get Sanded?

Not all plywood types go through the sanding line. This distinction matters when you are comparing prices between product types:

This table explains a real pricing difference that buyers observe: furniture-grade sanded panels cost more than packing panels even at the same thickness and core species. The sanding process consumes time, belts, and material — and it affects panel thickness (sanded panels are typically 0.2–0.4mm thinner than the nominal press thickness to account for material removal).

📋 Phase 1 — Calibration: The 60→80 Grit Sequence

Calibration is the heaviest sanding operation. The panel exits the hot press with surface irregularities, minor warping, and thickness variation across its face. The calibration line corrects all three.

⚙️ 60-Grit Pass — Stock Removal

The first belt runs at 60 grit. This is coarse by any standard — equivalent to an aggressive floor sanding application. At this grit:

• The steel contact drum presses firmly against the panel surface
• Material removal is 0.1–0.3mm per pass, depending on panel condition
• Surface scratches left by 60 grit are deep and clearly visible
• Belt speed is set higher to maximize stock removal efficiency

The 60-grit pass does not improve surface appearance. It levels the panel — removing press marks, surface irregularities, and thickness variation from edge to edge. A panel that entered calibration at 9.4–9.8mm nominal thickness exits at a consistent 9.2mm (±0.3mm across the panel face).

⚠️ Important: For thin-face veneers below 0.3mm, factories reduce the 60-grit pressure or skip to 80 grit as the first pass. A miscalibrated 60-grit belt on 0.2mm birch face veneer causes burn-through in seconds. At HCPLY, QC checks face veneer thickness before setting the calibration drum pressure.

⚙️ 80-Grit Pass — Scratch Reduction

The second calibration belt runs at 80 grit. Its sole purpose is removing the scratches left by 60 grit. This is the “grit step rule” in practice: move up by no more than one step to ensure the previous grit’s scratch depth is fully removed.

The 80-grit pass removes a further 0.05–0.1mm of material. The surface is still rough to the touch, but the deep 60-grit tracks are gone. The panel is now dimensionally stable and ready for finish sanding.

📊 Phase 2 — Finish Sanding: The 100→120→150 Grit Sequence

Finish sanding shifts the objective from thickness control to surface quality. The machine changes configuration: a rubber-padded platen replaces or supplements the steel drum, belt tension reduces, and belt speed may lower to reduce heat generation on the face veneer.

📌 Why Surface Temperature Matters

Heat is the primary enemy of finish sanding on thin-face plywood. Dull belts create friction heat faster than fresh belts. At 120 grit and above, if the belt temperature rises past the glue line temperature — typically 110°C for melamine, 135°C for phenolic — the face veneer can delaminate from the core mid-sanding. (Kumarengineeringco.in, 2024)

Factories monitor belt condition by tracking:

• Sheets processed per belt (replace before degradation, not after)
• Surface temperature of panel exiting the sander (infrared probe)
• Visual check for “glazed” scratches (sign of dull belt overheating)

100-Grit Pass — Intermediate Bridge

The 100-grit belt is a bridge between calibration and finish. It removes the 80-grit scratches without the risk of aggressive material removal from the face veneer. This pass requires precision — too much pressure at 100 grit still risks burning through 0.2mm face veneer on thick-core panels.

The 100-grit pass reduces surface roughness from visible-to-touch to detectable-by-touch. The factory inspector can still feel the grain texture, but the calibration scratches are gone.

120-Grit Pass — Pre-Finish Grade

At 120 grit, the panel surface reaches a quality level that many commercial buyers specify as the minimum acceptable for general interior furniture use. Major buyers in India, Southeast Asia, and the Middle East typically accept 120-grit finish for standard furniture-grade panels.

The 120-grit pass leaves the panel “paint-ready” for most applications. Lacquer, water-based paint, and vinyl wraps all bond well to a 120-grit surface. However, open-pore wood stains and oil finishes require a finer surface.

💡 Tip: When requesting a sanded plywood sample from HCPLY, specify the target grit finish. “Sanded plywood” without a grit specification defaults to 120-grit finish. If your application requires 150 or 180, state it explicitly in your specification sheet.

150-Grit Pass — Furniture Export Grade

The 150-grit pass is the standard finish for furniture-grade export plywood destined for the EU, South Korea, Japan, and Australia. At this grit:

• Surface roughness is smooth to the touch
• Face veneer grain texture is defined but not rough
• The surface accepts high-build lacquer, UV coating, and premium PVC overlay without adhesion issues

Material removal at 150 grit is minimal — approximately 0.01–0.02mm per pass. The sander operates at lower belt tension and reduced drum pressure. The panel is visually inspected after each 150-grit pass under raking light to detect any remaining scratch marks or veneer irregularities.

📐 Grit Sequence by Product and Market

Different export markets specify different surface finish standards. This table maps common buyer requirements to the required factory grit sequence:

“We specify grit finish on every order confirmation and verify it with a sample panel before loading the container. A buyer in Germany requesting 150-grit E0 furniture plywood gets a different surface specification than a buyer in India requesting 120-grit commercial grade — even if the core and glue are identical.” — Lucy, International Sales Manager, HCPLY

The practical implication for importers: if you do not specify grit finish, you will receive whatever the factory’s standard finish is — and that standard varies by factory segment.

🔧 Calibration Machines vs. Finish Sanders

The physical equipment matters when evaluating sanding quality. A factory running one machine for both calibration and finish sanding is cutting corners — and the panel surface will show it.

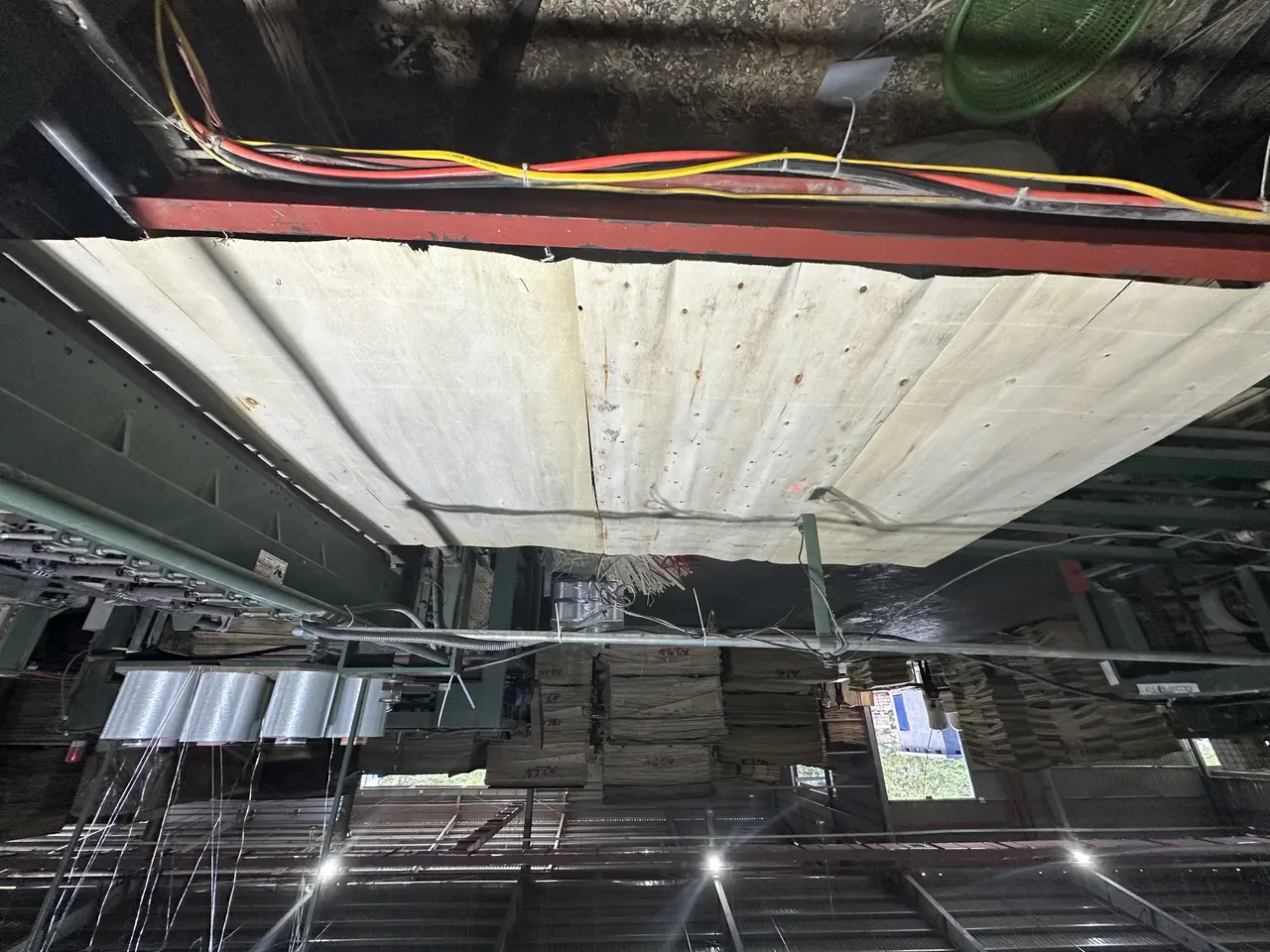

Calibration Sanders use a heavy steel contact drum. The drum is rigid and does not flex, which is exactly what thickness accuracy requires. The drum presses the belt against the panel uniformly across its full width, removing material evenly from edge to edge. These machines are large, expensive (USD 40,000–120,000 per unit), and require regular drum grinding to maintain flatness. (TMC Wood Machinery, 2024)

Finish Sanders (Wide-Belt Platen Sanders) use a rubber-padded platen or combination roller+platen system. The rubber pad absorbs minor surface irregularities and follows the panel grain, producing a consistent finish without over-sanding high points. Belt tension is lower, feed speed is slower, and the abrasive belt itself is finer and more expensive per unit.

HCPLY’s furniture production facility runs dedicated machines for each phase: a calibration line handles all 60→80-grit work, then panels transfer to a separate wide-belt finish sander for the 100→120→150 passes. This separation prevents cross-contamination of coarse abrasive particles (which cause deep scratches on fine-grit panels) and allows each machine to be optimized for its specific task.

🏭 Why Calibration Sanding Matters for Importers

Thickness tolerance is not just a specification number on a data sheet. It directly affects how plywood performs in your buyer’s application — and how your buyer rates you as a supplier.

Furniture manufacturers cutting cabinet boxes, drawer frames, or shelf panels require consistent thickness across every sheet. A ±1mm variation in panel thickness means joints that do not close flush, visible gaps at cabinet edges, and rejected assemblies at the end of the furniture production line. EU cabinet buyers specify thickness tolerance of ±0.3mm as a minimum — consistent with HCPLY’s factory-calibrated output.

The calibration sanding sequence (60→80) is what produces that ±0.3mm tolerance. Without it, panels pressed at 120°C for 60 seconds still vary by ±1.0–1.5mm across the face — well outside furniture-grade tolerance. (Norton Abrasives, 2024)

💡 Pro tip: Ask your supplier to show you a thickness measurement record for the last shipment. Premium factories record thickness at 9 points across each panel (four corners, four edges, center). Factories without calibration equipment cannot produce this record.

Get Sanded Furniture-Grade Plywood Specs

📦 Sanded Plywood Specifications — What to Include in Your Order

When placing an order for sanded plywood from Vietnam, these are the parameters that define the product — all of them affect price:

All sanded furniture-grade panels from HCPLY are calibration-sanded as a standard process. The grit finish level (120/150/180) is confirmed on the purchase order. Understand the full plywood manufacturing process that precedes sanding — particularly hot pressing parameters and core construction — to understand why calibration is necessary before finish sanding begins.

✅ Sanding Quality Checks at HCPLY

After the finish sanding line, every production batch undergoes a structured QC check before palletizing:

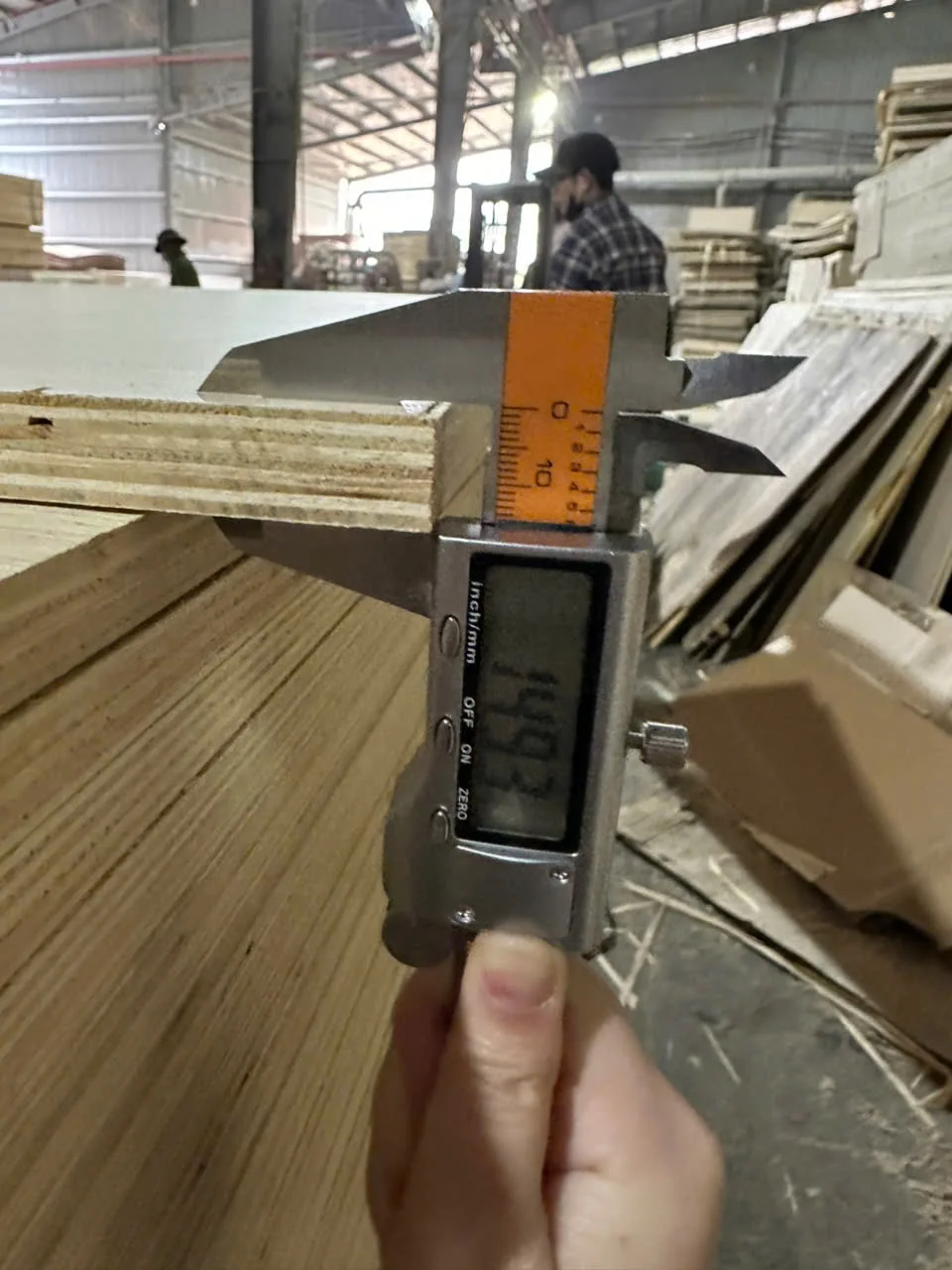

Thickness Measurement — 9-point measurement across each panel using a calibrated digital caliper. Panels outside ±0.3mm tolerance return to the sanding line for a correction pass or are downgraded.

Surface Inspection — Under raking light at 45°, QC inspectors look for: visible scratch marks from previous grits, veneer burns (dark spots from heat), face veneer thinning or transparency (sign of near burn-through), and raised grain fibers.

Moisture Check — Post-sanding moisture content must remain 8–14%. Over-sanding generates heat that can drive moisture below 6%, causing panels to absorb ambient moisture after palletizing and develop surface waviness.

Panels that pass all three checks are accepted, marked with the production batch number, stacked, strapped, and placed on pallets for container loading. HCPLY provides photos of the QC process and final pallet stacking for every container — buyers can verify surface quality before shipping.

For furniture plywood buyers who need precise surface specifications, the plywood face veneer types guide covers which face species tolerate aggressive calibration and which require the lighter-pressure 80-grit-first approach. Similarly, buyers specifying panels with E0 emission for the EU market should review plywood glue types and emission standards — the glue type affects hot-press temperature, which directly affects how the face veneer responds to calibration sanding.

🔗 Related Technical Guides

For buyers importing sanded furniture plywood, these articles cover the production steps that precede and follow sanding:

• Vietnam Plywood Manufacturing Process — From Log to Container — Full 10-stage factory process including hot-pressing parameters before sanding
• Plywood Core Types — Acacia vs Eucalyptus vs Styrax — Core species affect density and calibration sanding removal rates
• Plywood Face Veneer Types — Complete Buyer Guide — Face species and thickness determine which grit sequence is safe
• Plywood Glue Types and Emission Standards — Glue type affects hot-press temperature, which affects post-press panel surface condition

📋 Summary — Factory Sanding Grit Sequence

The complete factory sanding grit sequence for furniture-grade export plywood:

Calibration Phase:

1. 60 grit — heavy stock removal, panel leveling, thickness calibration
2. 80 grit — removes 60-grit scratch depth, prepares for finish phase

Finish Phase: 3. 100 grit — removes 80-grit scratches, bridge between calibration and finish 4. 120 grit — commercial furniture standard, India and Middle East markets 5. 150 grit — furniture export standard, EU, Korea, Japan, Australia 6. 180 grit (premium) — ultra-smooth for lacquer, UV coating, Japanese market

The rule that applies throughout: never skip more than one grit. On 0.2–0.3mm face veneers, skip no grits. Replace belts before degradation produces heat, not after visible burn-through.

If you are importing sanded plywood from Vietnam and need factory-verified thickness tolerance and grit finish documentation, HCPLY provides this as a standard part of every order’s quality documentation.
