Film Faced Plywood Manufacturing: Vietnam Factory Guide

Vietnam ships large volumes of film faced plywood every month. A significant share of those panels fail in the field — delaminating after 3 uses, leaving concrete marks, or bowing under pour weight. The failure happens in the factory, not on the construction site.

Understanding the manufacturing process film faced plywood Vietnam factories use reveals exactly where quality gets built in — and where budget suppliers cut corners. This guide walks through each production stage using factory-level data from HCPLY’s dedicated film faced facility in Phu Tho Province, Northern Vietnam.

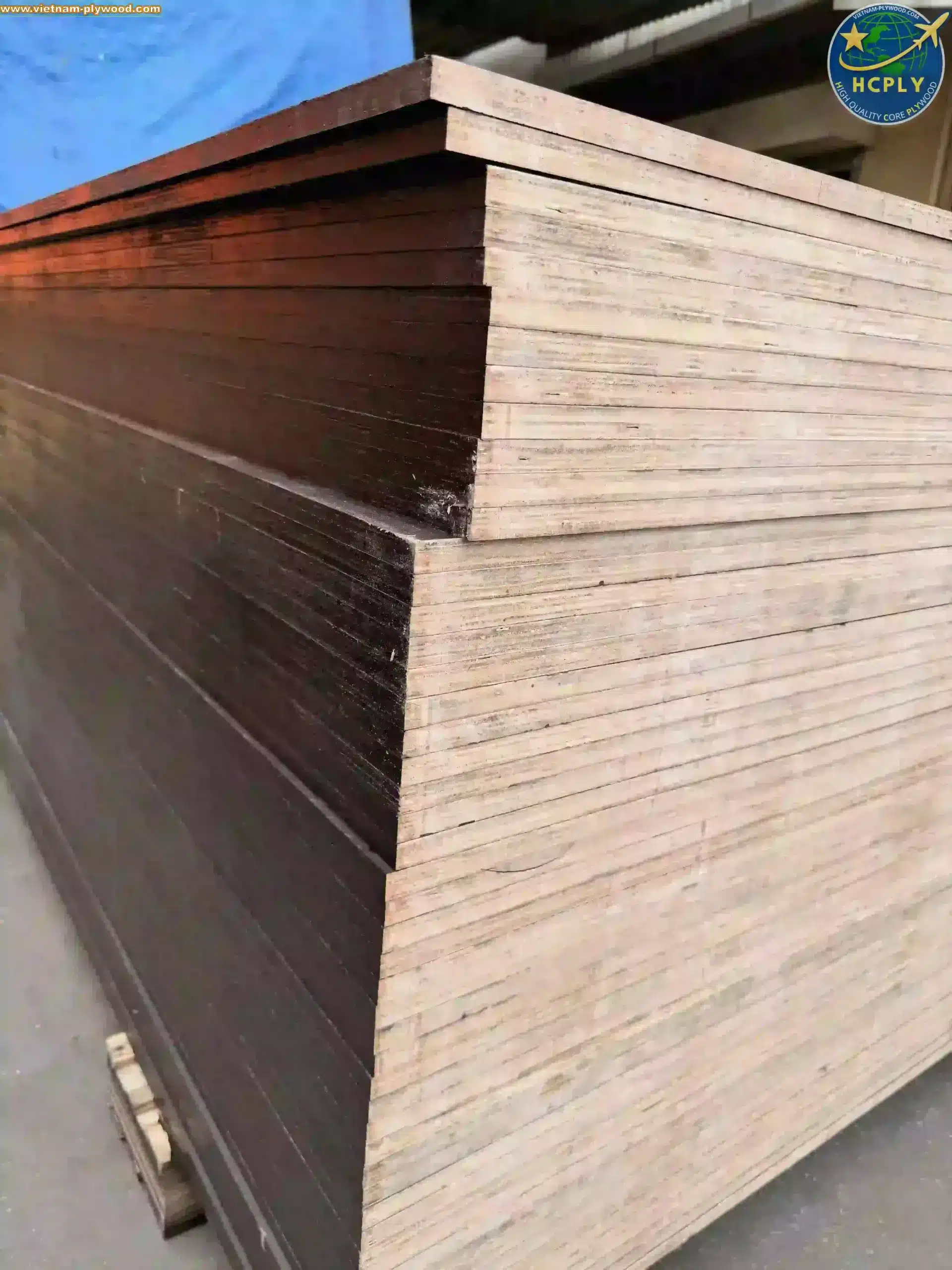

📋 What Is Film Faced Plywood? Definition and Core Structure

Film faced plywood is a structural-grade panel consisting of cross-grain veneer layers bonded with phenolic WBP adhesive, with a phenolic or melamine film laminated under heat and pressure onto both face surfaces. The film — typically dark brown or black — creates a smooth, waterproof, concrete-release surface designed for repeated formwork cycling.

The panel structure, from surface to center:

1. Phenolic film (face) — 120–220 gsm depending on grade
2. Face veneer — 0.2–0.4mm, eucalyptus or mixed hardwood
3. Cross veneer layers — alternating grain, bonded with phenolic WBP
4. Core species — eucalyptus or acacia (Vietnam), not styrax for formwork
5. Mirror construction on reverse side

Standard dimensions: 1220×2440mm (4×8 ft) and 1250×2500mm (metric), thickness 12–21mm. All layers are odd-numbered for balanced symmetry — a critical structural requirement that prevents warping.

💡 Key Insight: The film is not glued onto the surface as a separate step. It is bonded under heat and pressure using the same phenolic chemistry as the core adhesive. A factory that treats film application as a paint-type overlay is not following certified production protocol.

🏭 Stage 1: Log Selection and Conditioning

The manufacturing process film faced plywood Vietnam factories use starts well before veneer peeling. Log species selection determines the final panel’s density, screw-holding strength, and deflection under concrete load.

HCPLY’s dedicated film faced facility uses:

• Eucalyptus core logs — density 650–750 kg/m³, grown in Northern Vietnam plantations
• Acacia logs — density ~580 kg/m³, for budget formwork grade panels
• Sourced within 200km of the Phu Tho factory for freshness and moisture control

Logs are stored in conditioning ponds or steam rooms for 24–72 hours before peeling. This softens the wood fiber and allows more uniform veneer thickness during rotary cutting. Hardwood logs like eucalyptus require longer conditioning than softwood — skipping or shortening this step causes veneer breakage and higher waste during peeling.

⚠️ Important: Budget factories skip conditioning to save time. The result is higher veneer breakage, more patching in the core layers, and weaker bond line in finished panels — even if the final product appears normal on visual inspection.

⚙️ Stage 2: Rotary Veneer Peeling

A continuous lathe peels a rotating log against a stationary blade, producing a continuous thin sheet of wood veneer. This is the same rotary veneer peeling process used in all plywood manufacturing.

Film faced plywood production parameters at the rotary peeling stage:

• Face veneer thickness: 0.2–0.4mm (thinner for smoother surface against the film)
• Core veneer thickness: 1.5–2.0mm (thicker for structural rigidity)
• Log diameter range: typically 15–35cm for eucalyptus in Vietnam

Freshly peeled veneer contains 30–60% moisture by weight. It comes off the lathe as a continuous ribbon, then is clipped into sheets matching the panel dimensions. Defective sections — knots, splits, bark inclusions — are clipped out at this stage, not later.

The quality of veneer peeling directly determines the number of core patches needed. Certified film faced plywood for EU and Korean construction markets requires near-defect-free core layers. Budget panels tolerate higher defect rates — visible in cross-section when panels are cut on site.

🔧 Stage 3: Veneer Drying

Fresh veneer at 30–60% moisture cannot be bonded. Moisture traps under phenolic adhesive create steam pockets during hot pressing, producing internal voids and delamination within the first 2–3 formwork cycles.

Target moisture after drying: 6–8%

Vietnam’s certified factories use continuous roller dryers operating at 160–180°C with air circulation. Veneer passes through the dryer on a conveyor belt at controlled speed — transit time determines final moisture content. Each batch is moisture-checked using a pin-type meter before entering the bonding line.

(HCPLY production data, 2026)

Why 6–8% matters for film faced production specifically:

• Below 6%: adhesive absorbs too quickly, bond line is starved
• Above 10%: steam pockets form during hot press, internal voids in core
• Above 12%: film fails to bond cleanly — surface delamination within 5 reuse cycles

This moisture window is tighter than for furniture plywood because phenolic adhesive — used in film faced production — cures by a condensation reaction that is disrupted by excess moisture. Melamine adhesive is more tolerant of higher moisture, which is one reason budget factories shift to melamine for cost savings. For formaldehyde emission ratings across Vietnamese plywood grades, see our emission comparison guide.

📊 Stage 4: Veneer Grading and Core Assembly

After drying, veneers are sorted by quality grade:

• Grade A: Clean face, suitable for outer face veneer under the film
• Grade B: Minor defects, used for inner core layers
• Grade C/D: Larger gaps and cracks — patched with phenolic filler tape or excluded

For film faced plywood, the outer face veneer (Grade A) sits between the core and the film. Surface defects on the face veneer telegraph through the film during concrete pouring, creating surface marks on formed concrete. This is why premium formwork panels specify defect-free face veneer even though it is never visible on the finished panel.

Core lay-up pattern for an 18mm film faced panel (typical):

• Face veneer (longitudinal grain) × 2 outer layers
• Cross veneer (perpendicular grain) — alternating layers
• Total: 9 plies for 18mm (factory construction varies by target thickness)

All grain orientations are perpendicular between adjacent layers. This cross-grain construction gives the panel bi-directional bending strength and prevents the panel from cupping along any single axis — critical for wall formwork spanning 2.4m between studs.

🔧 Stage 5: Glue Spreading and Pre-Press

Phenolic resin adhesive is spread onto each veneer layer using a roller glue spreader. The spreading rate for phenolic WBP film faced production is calibrated for complete coverage without excess — excess adhesive at the bond line causes bleed-through to the surface and film adhesion failure.

Phenolic glue parameters:

• Spreading rate: 160–200 g/m² (both sides combined)
• Resin solids content: typically 45–55%
• Pot life: 4–8 hours at room temperature

After glue spreading, the assembled lay-up goes through cold pre-pressing at 1.0–1.2 MPa for 10–20 minutes. Cold pressing removes air between layers and aligns the veneer stack before hot pressing. Skipping cold pressing leads to veneer shift during the first seconds of hot press entry, causing dimensional variation in finished panels.

The hot press parameters for phenolic WBP glue differ significantly from melamine MR — a critical distinction that determines both performance and production cost.

⚙️ Stage 6: Hot Pressing — Core Bonding

This is the most critical stage in the entire manufacturing process. The assembled veneer stack enters a multi-opening hot press operating under controlled temperature, pressure, and time.

HCPLY film faced facility hot press parameters for phenolic WBP:

(HCPLY production data, 2026)

After pressing, panels cool to below 60°C before film application. Pressing hot panels with film causes thermal shock delamination of the film surface — a defect that appears only after 2–3 formwork cycles, making it undetectable at the factory loading stage.

What happens when press parameters are wrong:

• Temperature too low (< 130°C): phenolic resin does not fully cure → bond line fails in boiling test
• Pressure too low: delamination under point loads on the construction site
• Time too short: surface tack without full depth cure → panels pass visual inspection but fail structural loading

📋 Stage 7: Film Lamination — The Defining Step

Film lamination is what separates film faced plywood from standard plywood. This stage is the signature step in phenolic film plywood manufacturing — it takes place in a second hot press, a dedicated film bonding press, separate from the core bonding press.

Film types used by Vietnam factories:

AICA phenolic film — the standard used at HCPLY’s premium film faced facility — is a thermosetting paper impregnated with phenolic resin at specified saturation levels. During lamination, the resin in the film cross-links with the phenolic adhesive on the face veneer, forming a chemical bond rather than a mechanical adhesion.

Budget factories use lower gsm film to reduce material cost. The difference is measurable: a 120 gsm panel subjected to the same concrete pour cycle count shows surface cracking and concrete bonding (sticking) by cycle 5, while a 220 gsm AICA panel shows no surface degradation at cycle 12 (HCPLY field data from Korean construction site reports, 2025).

Film lamination press parameters:

• Temperature: 130–145°C (same chemistry as core press)
• Pressure: 1.0–1.2 MPa
• Time: 8–12 minutes (shorter than core press — film layers are thin)

After film lamination, panels are edge-painted with phenolic resin paint to seal cut edges against moisture ingress. Unsealed edges are the second-most-common cause of delamination in the field after veneer moisture errors.

📐 Stage 8: Trimming, Sanding, and Edge Sealing

After both pressing stages, panels go through finishing:

Trimming: Panels are cut to final dimensions (1220×2440mm or 1250×2500mm) using precision saws. Tolerance: ±2mm on length/width. Film faced panels are NOT sanded on the face — sanding removes the film. Only the core layer panels before lamination may receive light face sanding on the raw veneer.

Thickness calibration: Some certified facilities pass panels through a calibration roll to achieve the ±0.3mm thickness tolerance required by Korean and EU buyers. Budget facilities rely on press platen calibration alone — tolerances are typically ±0.5mm or wider.

Edge sealing: All four edges are painted with phenolic resin paint or similar moisture-resistant coating. This is a simple step with a large impact on panel life — unprotected cut edges absorb water immediately on the construction site, triggering delamination within the first formwork cycle.

⚠️ Note: On site, any saw-cut panel edges (trimmed panels, drilled holes) must be resealed with phenolic paint or waterproof coating. Most formwork failures in field use trace to sealed factory edges that are cut through during site modification.

🔍 Stage 9: Three-Stage Quality Control

Certified Vietnamese factories run QC checks at three points in the process — not just final inspection.

QC Stage 1 — After core hot pressing:

• Internal void check (tap test or acoustic emission)
• Dimensional measurement — thickness at 4 corners + center
• Core bond check — 3-layer shear test on sample

QC Stage 2 — After film lamination:

• Film adhesion check — crosshatch scratch test on sample panels
• Surface flatness — maximum 2mm bow over 2440mm length
• Visual check — bubbles, fish-eyes, edge delamination

QC Stage 3 — Before container loading:

• Final dimension check
• Film surface condition
• Moisture content of finished panels (target ≤12%)
• Stamping: factory name, specification, certifications

“Every panel leaving our film faced facility passes through a three-point QC protocol. We reject and re-press panels with film adhesion issues — they never reach the loading dock.” — Lucy, International Sales Manager, HCPLY

This three-stage gate is standard practice at certified factories (ISO 9001, CE). Budget facilities may skip Stage 1 and Stage 2, relying only on final visual inspection — which cannot detect internal voids or sub-standard bond lines.

📦 Premium vs. Budget Film Faced Plywood: Factory-Level Differences

Understanding the manufacturing process film faced plywood Vietnam factories use makes the price difference between premium and budget panels clear. This is not a branding distinction — it is a production specification difference at every stage.

The price difference between premium and budget film faced plywood from Vietnam is typically $40–80 per m³ FOB. Over 15 reuse cycles, the cost per use of premium panels is significantly lower — a straightforward total-cost-of-ownership calculation that experienced procurement teams apply when specifying formwork materials (Forest Stewardship Council, formwork lifecycle guidance, 2024).

🏭 Film Faced Production Facility Standards

• Location: Ha Hoa District, Phu Tho Province (Northern Vietnam, cluster of eucalyptus supply)
• Certifications: FSC, CE, ISO 9001
• Capacity: part of 50-100 containers/month total export volume
• Core species: eucalyptus (primary), acacia (budget formwork grade)
• Film grade: AICA phenolic film standard; budget film on request
• Export markets: Korea, EU, Middle East, Australia

Factory-direct documentation — CO, Phytosanitary, FSC certificate, test reports — is included with every shipment. Lead time from order confirmation: 15–20 days.

Request Factory-Direct Film Faced Plywood Quote

📊 What the Manufacturing Process Means for Buyers

The concrete formwork plywood specifications you specify on a purchase order do not automatically guarantee the production process behind them. Two panels labeled “18mm, phenolic WBP, AICA film” can represent entirely different manufacturing processes depending on the factory.

These questions cut through marketing language and expose the film faced plywood production standards of any factory:

1. Veneer moisture protocol — What is the target moisture and how is it verified before pressing?
2. Hot press time per mm — What is the factory’s standard press cycle for phenolic WBP?
3. Film grade and origin — AICA or domestic? What is the gsm specification?
4. Core construction — Stitched, edge-jointed, or loose-laid?
5. QC gate count — How many inspection points before loading?
6. Edge sealing — All four edges or two?

Factories with rigorous production protocols answer these questions with specific numbers. Factories without rigorous protocols answer with vague assurances.

✅ Conclusion: Process Determines Performance

Film faced plywood manufacturing in Vietnam spans 8 production stages, each with specific parameters that determine whether the finished panel delivers 5 uses or 20 uses on a construction site. The manufacturing process film faced plywood Vietnam certified factories follow — controlled veneer drying, full-coverage phenolic adhesive, AICA film lamination, three-stage QC — is the opposite of what budget producers deliver at lower prices. Phenolic film plywood manufacturing at the premium level requires capital investment in dedicated film presses, AICA film stock, and multi-stage QC infrastructure that budget facilities simply do not carry.

For buyers importing formwork plywood, the selection decision is not simply about price per m³ FOB. It is about total cost over the formwork cycle count. A premium panel at $480/m³ that delivers 18 reuses costs less per use than a budget panel at $380/m³ that delivers 6 reuses — and it eliminates mid-project formwork failure risk (ITTO Tropical Timber Market Report, 2025).

For thickness selection, reuse cycle optimization, and on-site formwork application guidance, see the companion guide: Film Faced Plywood for Concrete Formwork — Spec Guide.

The full film faced plywood product specifications — thickness range, core options, certifications, and pricing — are available from HCPLY’s dedicated film faced production team.

Disclosure: This article is published by HCPLY, a Vietnam-based plywood manufacturer and export operator. While we aim to provide objective industry guidance, readers should consider our perspective as a market participant when evaluating recommendations.

Contact HCPLY Now — Factory-Direct Film Faced Plywood

No commitment required. Samples available on request. Lead time: 15–20 days.

📐 Frequently Asked Questions

See FAQ section above for detailed answers to the most common questions about film faced plywood manufacturing in Vietnam.
